Description

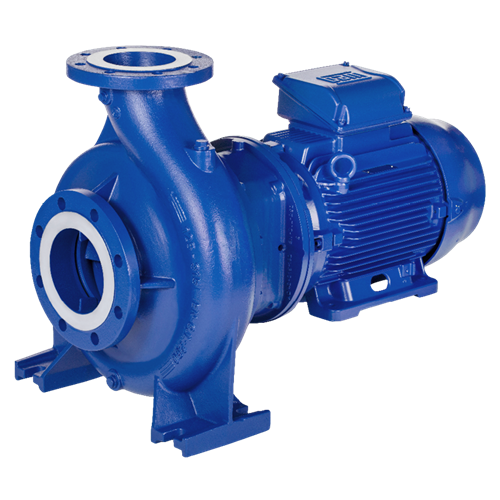

The Lowara e-NSC (ENSC) is an efficient suction pump for transferring water and clean fluids in the agricultural and industrial sectors and for the construction industry. The highly efficient hydraulic system and the high efficiency IE3 motors result in low operating costs, which can be reduced even further by adding a frequency converter. The cast iron pump body has high tensile strength, making it suitable for machine components subjected to more mechanical force. This series is available in several variants:

  • e-NSCE / ENSCE (close coupled with extended motor shaft)
  • e-NSCS / ENSCS (standard motor with stub shaft)
  • e-NSCF / ENSCF (on baseplate with shaft coupling)

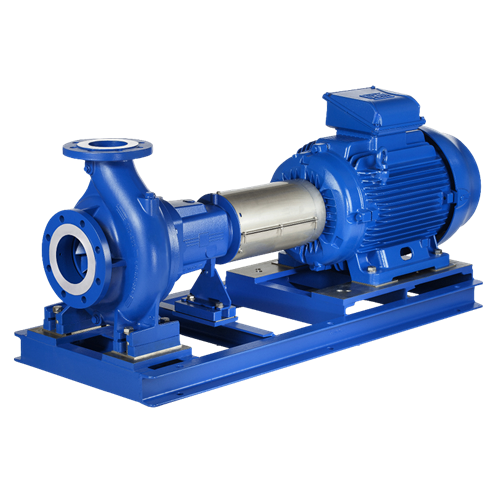

  • e-NSCC / ENSCC (on baseplate with extended shaft coupling)
  • e-NSC / ENSC (free shaft end)

The Lowara e-NSC series is also available in 60 Hz with cUЯus certification, suitable for the North American market. Click here for more technical information.

Specifications

  • Suitable for chemicals

  • Capacity:

    from 5 up to 1900 m³/h

  • Head:

    up to 154 mwc

  • Voltages:

    1-phase and 3-phase, 50 and 60 Hz

  • Suction end:

    DN50-DN350

  • Pressure end:

    DN32-DN300

  • Material pump body:

    cast ironstainless steel and duplex (on request)

  • Material impeller:

    304 stainless steel or cast iron316 stainless steel, bronze and duplex (on request)

  • Material shaft seal:

    Cer/SiC

  • Elastomers:

    EPDM
