Description

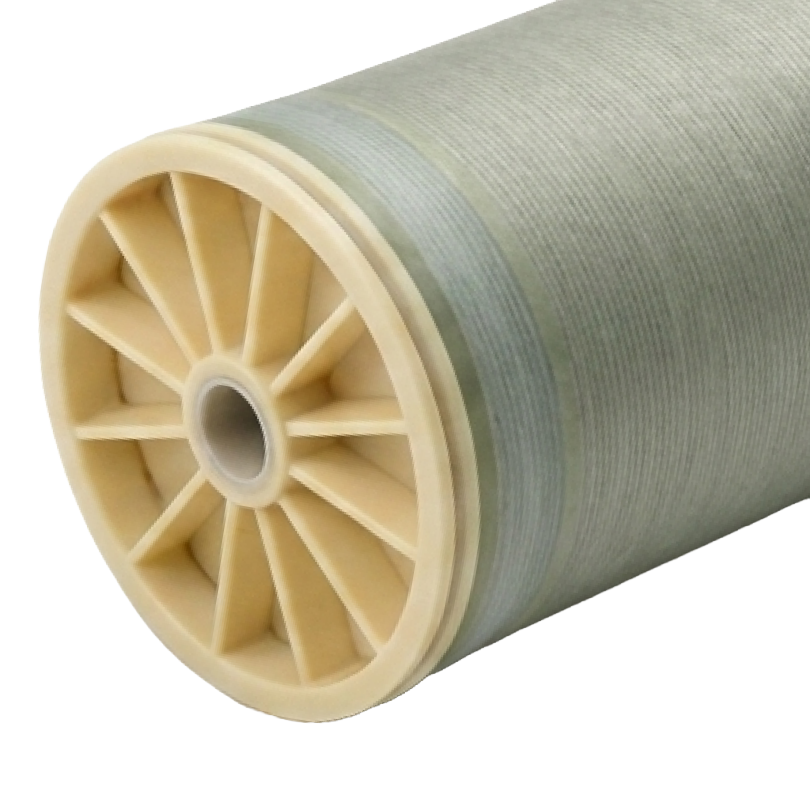

In reverse osmosis installations, the membrane forms the core of the desalination process. The TMG(D) series (including models TMG10D, TMG20D-400 and TMG20D-440) uses a strong and durable polymer membrane that ensures stable permeate quality combined with efficient water production at lower operating pressure. This effectively removes dissolved salts and unwanted substances from source, drain, or process water.



The membranes have been developed for brackish water and applications where energy efficiency plays an important role. The lower operating pressure required allows the system to operate more efficiently without compromising water quality.



Thanks to the wide pH tolerance and improved chemical resistance, cleaning procedures can be carried out effectively, contributing to a long operational life.



The TMG(D) series is available in the following models:

  • TMG10D (4040 element)
  • TMG20D-400 (8040 element)
  • TMG20D-440 (8040 element)
  • Filter paper
    Water, Consumables water treatment, Water treatment, Accessories, Filtration, Coolant filtration

    Filter paper

  • Pentair X-Flow 64
    Water, Consumables water treatment, Water treatment, Accessories, Filtration

    Pentair X-Flow 64

  • Toray TM700D series
    Water, Consumables water treatment, Water treatment, Accessories, Filtration

    Toray TM700D series

  • Toray TMH(A) series
    Water, Consumables water treatment, Water treatment, Accessories, Filtration

    Toray TMH(A) series

Specifications

  • Membrane material

    high-quality, fully aromatic polyamide composite membrane with crosslinking

  • Wide range of working pressure classes

  • Leading salt rejection

  • High flux / high permeate flow

  • Suitable for brackish and highly saline source water

  • Wide pH tolerance for cleaning and use

  • Maximum supply temperature

    45 °C (113 °F)

  • Available in standard module sizes of 4″ and 8″

  • Designed for efficient and reliable water reuse
