Description

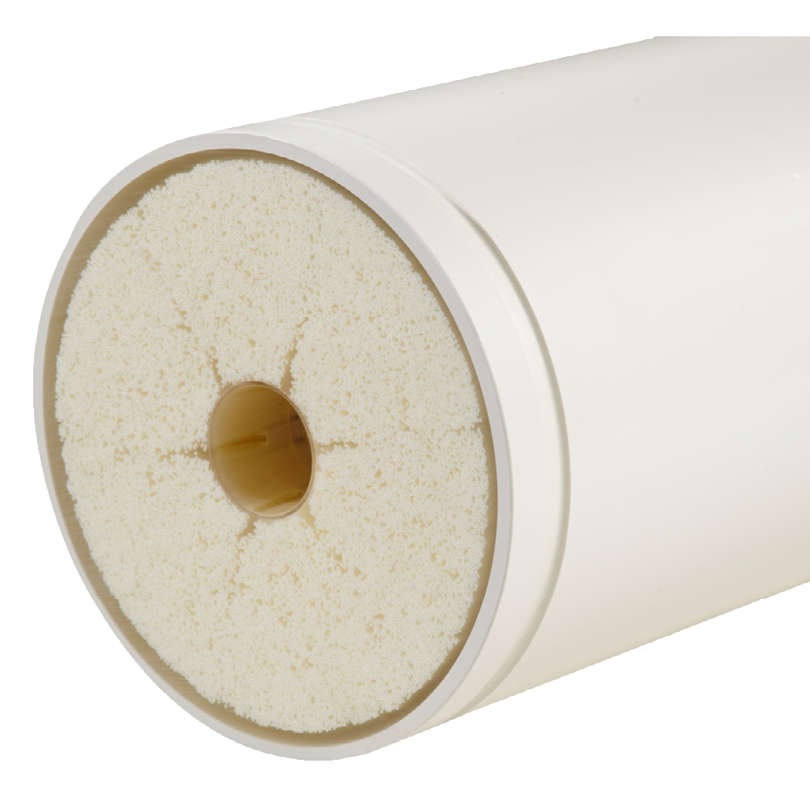

Within ultrafiltration installations, the membrane forms the core of the filtration process. The XF64 uses a hydrophilic hollow-fiber membrane in which water is filtered from the inside to the outside through the membrane fibers. This creates a robust mechanical barrier against microorganisms and suspended solids, while dissolved salts and nutrients are retained.



Thanks to the high membrane density and antifouling behavior, the filtration capacity remains stable, even with water flows of varying quality, such as drain or process water. The strong chemical resistance allows for regular cleaning, which contributes to a long operational life within ultrafiltration systems.



The XF64 is used as a replacement membrane and as an integral part of professional ultrafiltration solutions for water reuse and process water treatment.

  • Filter paper
    Water, Consumables water treatment, Water treatment, Accessories, Filtration, Coolant filtration

    Filter paper

  • Pentair X-Flow 75
    Water, Consumables water treatment, Water treatment, Accessories, Filtration

    Pentair X-Flow 75

  • Toray TM700D series
    Water, Consumables water treatment, Water treatment, Accessories, Filtration

    Toray TM700D series

  • Toray TMG(D) series
    Water, Consumables water treatment, Water treatment, Accessories, Filtration

    Toray TMG(D) series

Specifications

  • Membrane Material

    Hydrophilic hollow‑fiber ultrafiltration membrane made from a PES/PVP blend

  • Inside out filtration

  • Nominal Pore Size

    20 nm asymmetric/microporous structure

  • Effective Membrane Surface Area

    64 and 75 m² filtration area

  • Typical Permeate Quality

    SDI < 3 and turbidity < 0.1 NTU

  • Microbial Removal Performance

    Up to 99.9999% (Log 6) bacteria and 99.99% (Log 4) virus reduction

  • Module Dimensions

    Approx. 8.7” diameter × 1537.5 mm length

  • Operating Pressure Limits

    Max 100 kPa (filtration) and 200 kPa (backwash)

  • Operating Temperature Range

    0–40°C

  • Excellent Chemical Resistance

    Broad pH tolerance (pH 2–12) and high chlorine stability (up to 250 mg/L free chlorine)
