Description

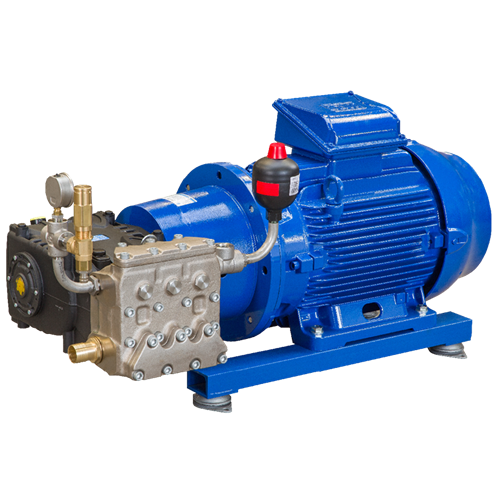

The Pratissoli high-pressure pump is available as a separate pump section or combined with a 4- or 6-pole electric motor to make a complete pump set. The pump sets can be supplied with a chassis, vibration dampers, overflow, pulsation damper, non-return valve, manometer and pressure transmitter. The set can also include a control system, using a frequency controller. These top-quality pumps have ceramic or ceramic-coated plungers and are low maintenance. The pumps are easy to install and have a long service life.

  • Danfoss PAH/PAHT
    Pumps, High-pressure pump, Plunger pump, Positive displacement pump

    Danfoss PAH/PAHT

  • High-pressure sets
    Pumps, High-pressure pump, Plunger pump, Positive displacement pump

    High-pressure sets

  • Hawk
    Pumps, High-pressure pump, Plunger pump, Positive displacement pump

    Hawk

Specifications

  • Wide range of applications

  • Direct coupling with motor possible

  • Robust pump part

  • High efficiency

  • Capacity:

    from 0,6 up to 23 m³/h

  • Maximum working pressure:

    1500 bar

  • Liquid temperature:

    up to 85 °C

  • Motor power P2:

    up to 150 kW

  • Material pump body:

    420 stainless steel (chemically nickel plated) or 316 stainless steel

  • Material plunjers:

    ceramic or stainless steel
