Description

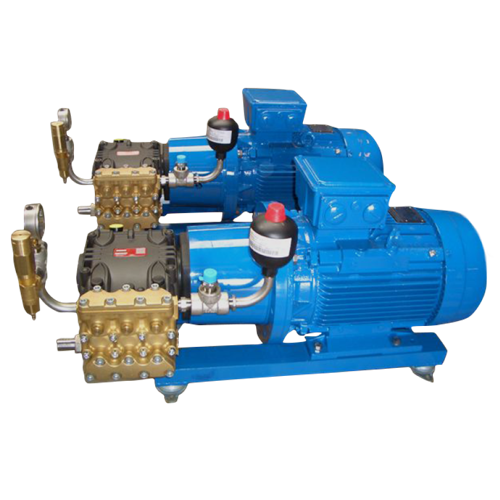

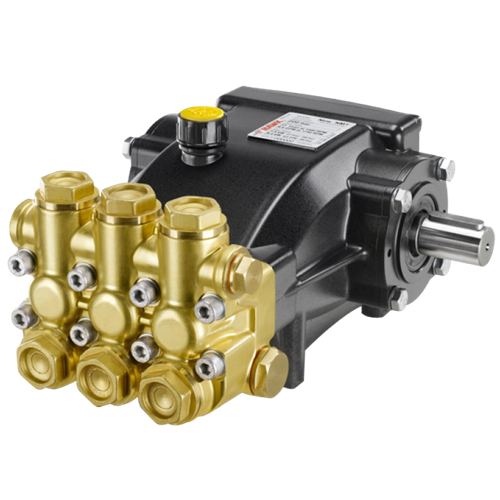

The Hawk high-pressure pump is available as a separate pump section or combined with a 4- or 6-pole electric motor to make a complete pump set. The pump sets can be supplied with a chassis, vibration dampers, overflow, pulsation damper, non-return valve, manometer and pressure transmitter. The set can also include a control system, using a frequency controller. The plungers are made of ceramic and the pump casing is made of brass or stainless steel. The wide range of Hawk pumps means there’s always an ideal Hawk pump, whatever the required capacity and pressure might be.

  • High-pressure sets
    Pumps, High-pressure pump, Plunger pump, Positive displacement pump

    High-pressure sets

  • Pratissoli
    Pumps, High-pressure pump, Plunger pump, Positive displacement pump

    Pratissoli

  • Danfoss PAH/PAHT
    Pumps, High-pressure pump, Plunger pump, Positive displacement pump

    Danfoss PAH/PAHT

Specifications

  • Wide range of applications

  • Direct coupling with motor possible

  • Double seal on each pump

  • High efficiency

  • Capacity:

    from 0,1 up to 10 m³/h

  • Maximum working pressure:

    600 bar

  • Liquid temperature:

    up to 85 °C

  • Motor power P2:

    up to 75 kW

  • Material pump body:

    stainless steel or brass (nickel-plated)

  • Material plunjers:

    ceramic or stainless steel
