Description

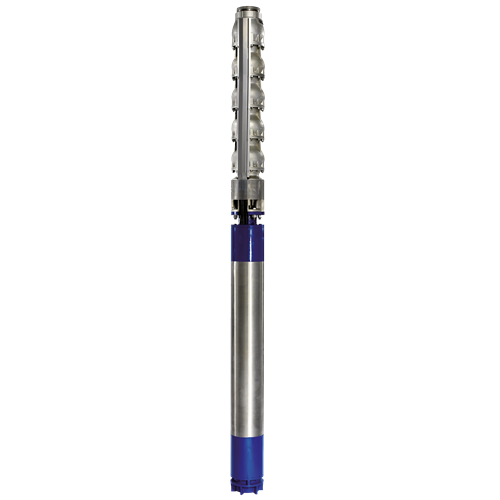

The Lowara Z12 is a robust, vertical centrifugal pump for 12” boreholes. The pump is highly tolerant of the presence of sand in the water and has high efficiency (e.g. because the design of the wear ring minimises recirculation losses). The shaft is specially designed to reduce vibration issues. The pumphead and the connection to the motor are made of cast stainless steel and the impellers and diffusers are made of stainless steel.

Specifications

  • Capacity:

    from 120 up to 520 m³/h

  • Head:

    up to 450 mwc

  • Liquid temperature:

    up to 30 °C, up to 60 °C (on request)

  • Voltages:

    3-phase, 50 and 60 Hz

  • Certificates:

    CE, EAC

  • Pressure end:

    8”

  • Material pump body and impeller:

    stainless steel or duplex

  • Cable:

    Neoprene (length on request)
