Home Products Pumps Lowara SHO
  • P007 Lowara SHO
Drainage pumpStandard centrifugal pump

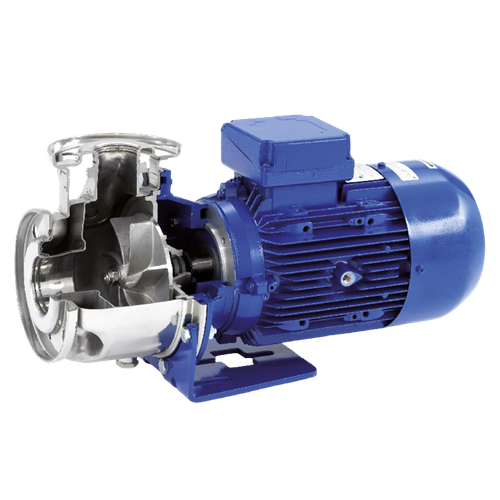

Lowara SHO

stainless steel 316 centrifugal pumps with semi-open impeller

The Lowara SHO series are standard-priming pumps for industrial and agricultural applications. The pumps are ideal for fluids containing suspended solids. The pump section is made entirely of 316 stainless steel and the electric motor is a 3-phase model.

  • Suitable for fluids containing suspended solids
  • Made entirely of 316 stainless steel
  • Different variants
Request quote Call me for advice
More information
Documentation
Specifications
Useful combinations
Also interesting

More information

Description

The Lowara SHO pump has an open and recessed impeller design, allowing free passage for suspended solids up to a maximum size of 40 mm. The series is used for e.g. circulating and pumping slightly viscous and aggressive fluids and in circulation systems for oil and cleaning agents, where the water can contain slightly aggressive suspended solids. This series is available in several variants:

  • SHOE (close coupled with extended motor shaft)
  • SHOS (standard motor with stub shaft)
  • SHOD (standard motor with adapter and double seal)



Documentation

Specifications

  • Suitable for abrasive parts and chemicals

  • Capacity:

    from 3 up to 56 m³/h

  • Head:

    up to 49 mwc

  • Liquid temperature:

    from -10 °C up to 120 °C

  • Voltages:

    1-phase and 3-phase, 50 and 60 Hz

  • Suction end:

    DN50-DN65

  • Pressure end:

    DN25-DN50

  • Material pump body and impeller:

    316 stainless steel

  • Material shaft seal:

    SiC/SiC

  • Elastomers:

    Viton® FPM
