Lowara e-MP

ring-section pumps

The Lowara e-MP series are highly efficient multistage pumps for slightly contaminated water. They are made from various materials, including cast iron and 316 stainless steel, and the flexible mechanical configuration and a suction impeller in the first stage give the pumps extremely high suction capability.

  • Both horizontally and vertically executable
  • Available in super duplex
  • Modular design
Request quote Call me for advice

  • Official Lowara Dealer NL & BE

  • Stock product

P022 Lowara E MP
P022 Lowara E MP (3)
P022 Lowara E MP (2)
P022 Lowara E MP (1)
More information
Documentation
Specifications
Useful combinations
Also interesting

More information

Description

The Lowara e-MP (EMP) multistage pumps have a modular design and are configured from four sizes with 10 hydraulic operating ranges. The U-turn channels create an ideal flow. The pumps are simple to integrate and are highly effective in nearly any high-pressure application. The maximum capacity of the pumps is 850 m³/h. All e-MP models are designed according to ISO 5199. This series is available in several variants:

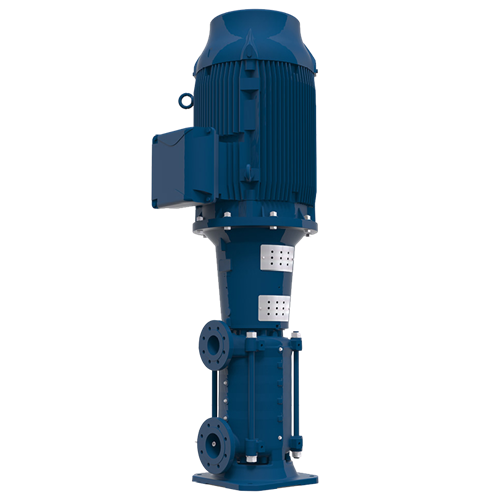

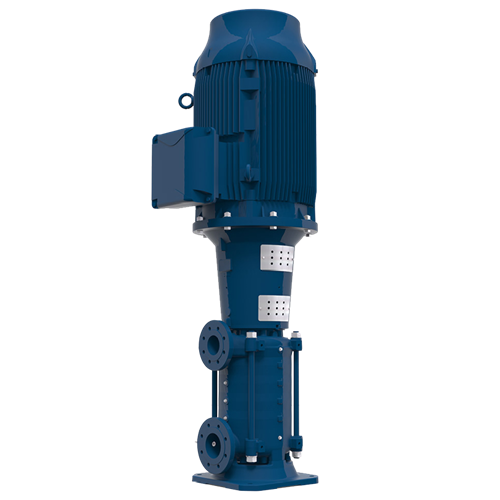

  • e-MPV / EMPV (vertical multistage pump)

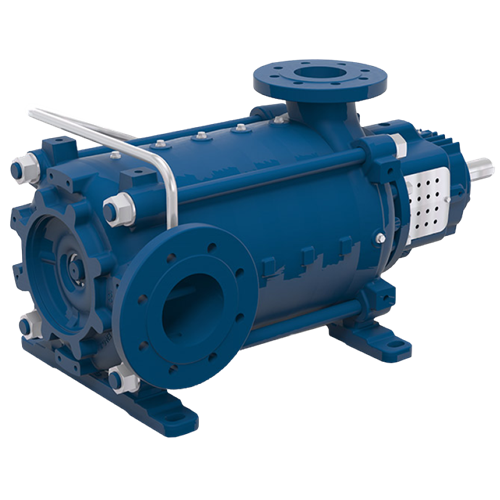

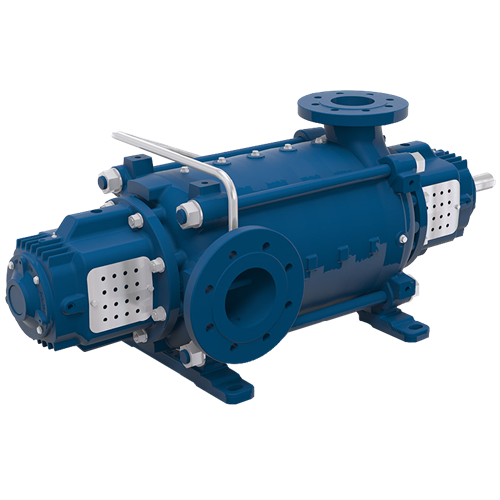

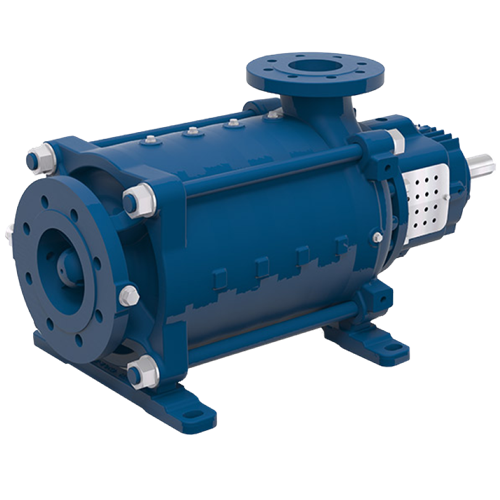

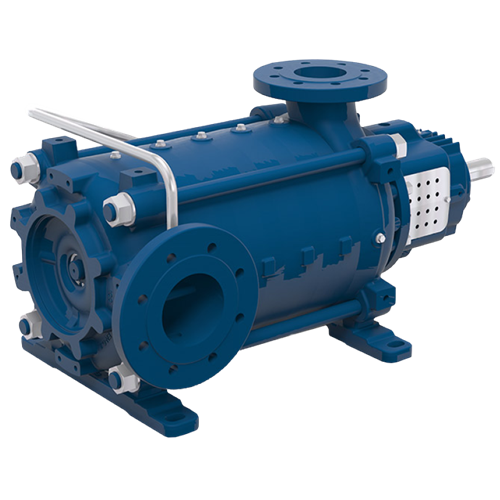

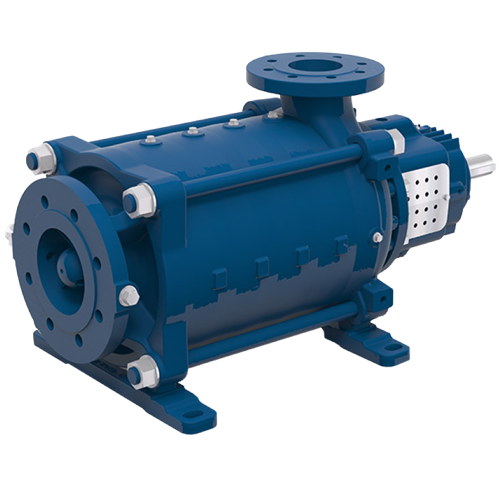

  • e-MPA / EMPA (horizontal multistage pump)
  • e-MPR / EMPR (horizontal multistage pump)
  • e-MPD / EMPD (horizontal multistage pump)



For more information about the Lowara brand, see the Lowara brand page.

Would you like to view the complete range of Lowara pumps? Go to the overview of Lowara pumps page.

  • Lowara e-IXP
    Climate, Pumps, Geothermal pump, Standard centrifugal pump

    Lowara e-IXP

    Product bekijken
  • Lowara e-SV
    Pumps, Booster pump, Multistage pump, Standard centrifugal pump

    Lowara e-SV

    Product bekijken

Documentation

Specifications

  • Capacity:

    from 2,5 up to 850 m³/h

  • Head:

    up to 950 mwc

  • Liquid temperature:

    from -25 °C up to 140 °C (180 °C optional)

  • Voltages:

    3-phase, 50 and 60 Hz

  • Suction and pressure end:

    DN50-DN150

  • Material pump body:

    cast iron, ductile iron, steel, 316 stainless steel and (super) duplex stainless steel

  • Materiaal impeller:

    cast iron, bronze, 316 stainless steel and (super) duplex rvs

  • Material shaft seal:

    SiC/Car

  • Elastomers:

    EPDM, Viton® FPM

  • Other materials on request
