Description

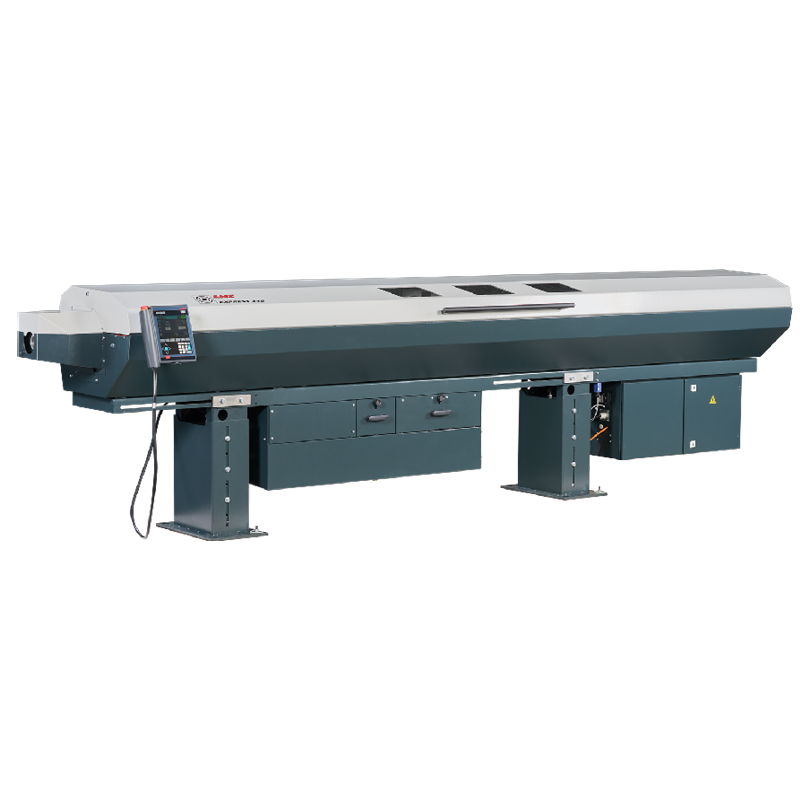

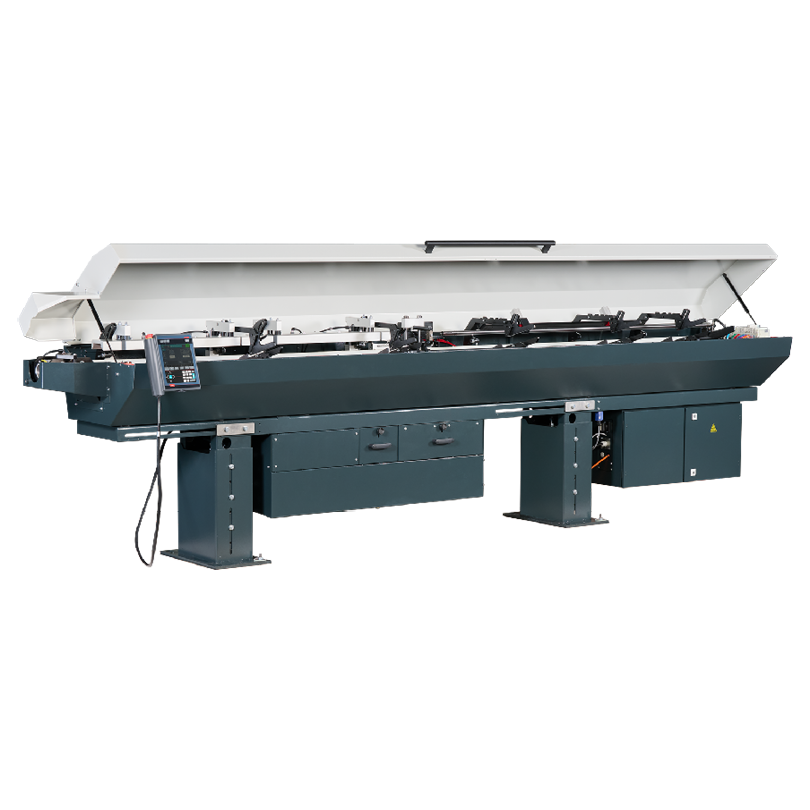

The LNS Express 346 evo offers a combination of power, precision, and ease of use in a single robust bar feeding system. Thanks to its stable construction and advanced guide channel, the long loader operates vibration-free and quietly, even at higher speeds and with heavier bar diameters.



The changeover time is exceptionally short: both partial and complete changeovers take only 2 minutes. This makes the Express 346 evo ideal for production environments with frequent product changes or varying bar diameters.



Automatic height adjustment and a user-friendly control panel ensure quick and accurate setup. The long-chuck lathe is suitable for lathes with both fixed and sliding heads and delivers consistent performance at diameters from 3 to 46 mm.

Specifications

  • Diameter:

    from 3 to 46 mm

  • Bar length:

    from 1200 to 3200 / 4020 mm

  • Loading capacity:

    up to 30 bars / 280 mm

  • Headstock type:

    fixed or sliding

  • Remnant length:

    min. 100 mm / max. 400 mm

  • Partial changeover:

    2 minutes (within the guide channel range)

  • Total changeover:

    2 minutes (including pusher)
