More information

Description

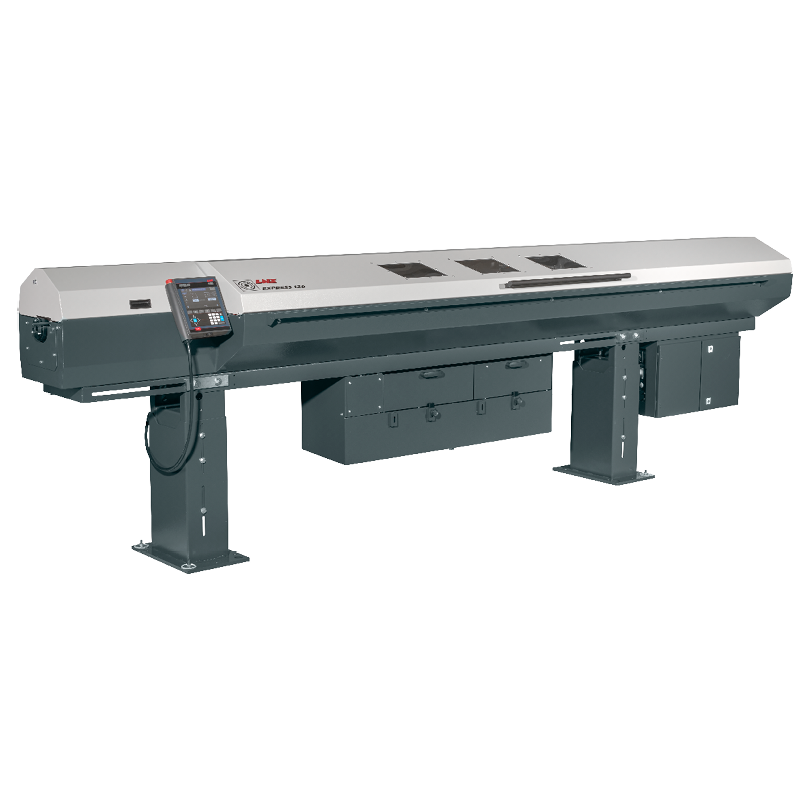

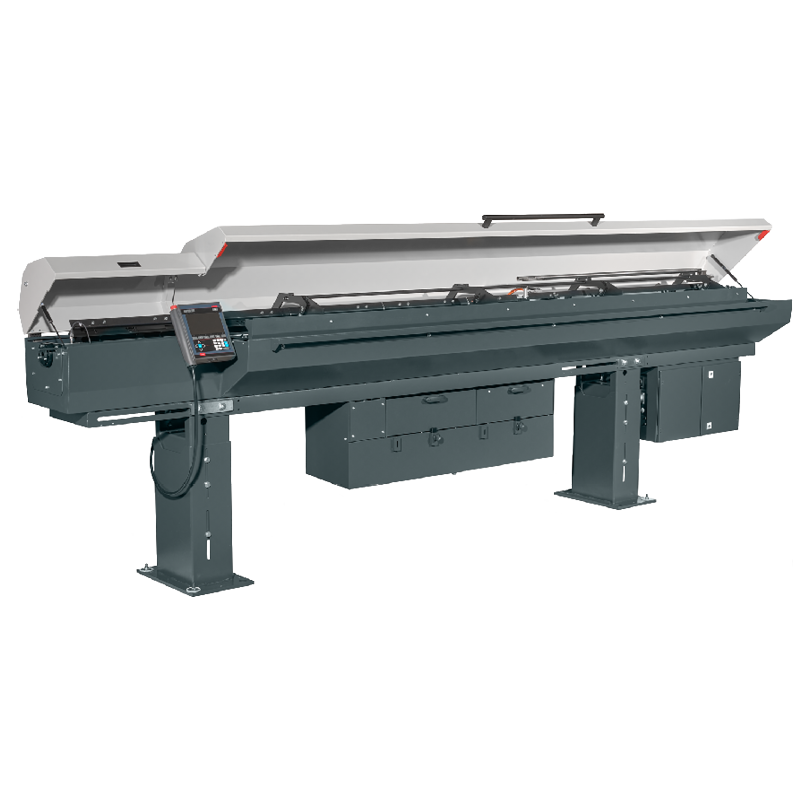

The Express 126 automatically selects the appropriate loading system based on the entered bar diameter: a screw conveyor for bars up to Ø 5 mm or an inclined ramp for larger diameters. This increases productivity without compromising accuracy. The integrated Hydrobar® technology ensures stable guidance during turning operations.



The bar feeder is designed for continuous operation in demanding production environments and can be easily integrated. Manual override of the settings is always possible, offering additional flexibility for varying batch sizes.

Specifications

  • Diameter:

    from 1 to 26 mm

  • Bar length:

    from 1300 to 3200/4200 mm

  • Loading capacity:

    up to 30 bars / 240 mm

  • Headstock type:

    fixed / sliding

  • Remnant length:

    min. 70 mm / max. 400 mm

  • Partial changeover:

    2 min (within the guide channel range)

  • Full changeover:

    8 minutes (including pusher)
