electromagnetic diaphragm pumps with adjustable stroke length

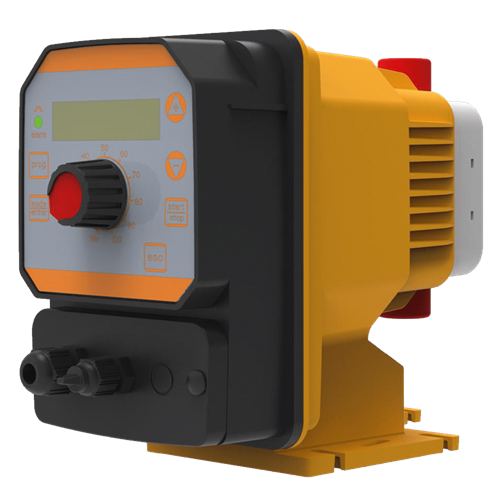

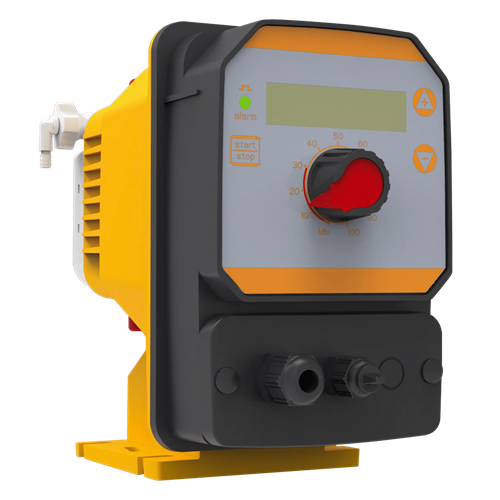

The Injecta Gea R series is a dosing pump with a PVDF pump head, PTFE diaphragm and ceramic bearings. The pump has an adjustable stroke length, which makes it ideal for pumping and dosing chemicals with great precision.
The Injecta Gea R is a robust diaphragm pump. The diaphragm provides both the volume flow and the separation between the magnet and the liquid. Two variants are available: The GEA R BL is a manually adjustable diaphragm pump, while the GEA R MT is an automatically adjustable controlled pump. Thanks to the small number of parts, this product is extremely low maintenance.
Injecta Athena
Injecta Taurus
Electromagnetically coupled diaphragm pump
Hydraulic and electrical part separated
Capacity:
from 2,5 up to 110 l/h
Maximum working pressure:
20 bar
Voltages:
1-phase 100-240VAC 50/60 Hz
Protection:
IP65
Material pump head:
PVDF
Material diphragm:
PTFE
Material bearings:
ceramic
Elastomers:
EPDM or Viton® FPM
A wide range of types and models of floats are available for controlling and switching pumps and valves, and regulating the level of water reservoirs, silos, and sewage and subsurface drainage tanks. Most of the floats can be delivered immediately from stock.
