Description

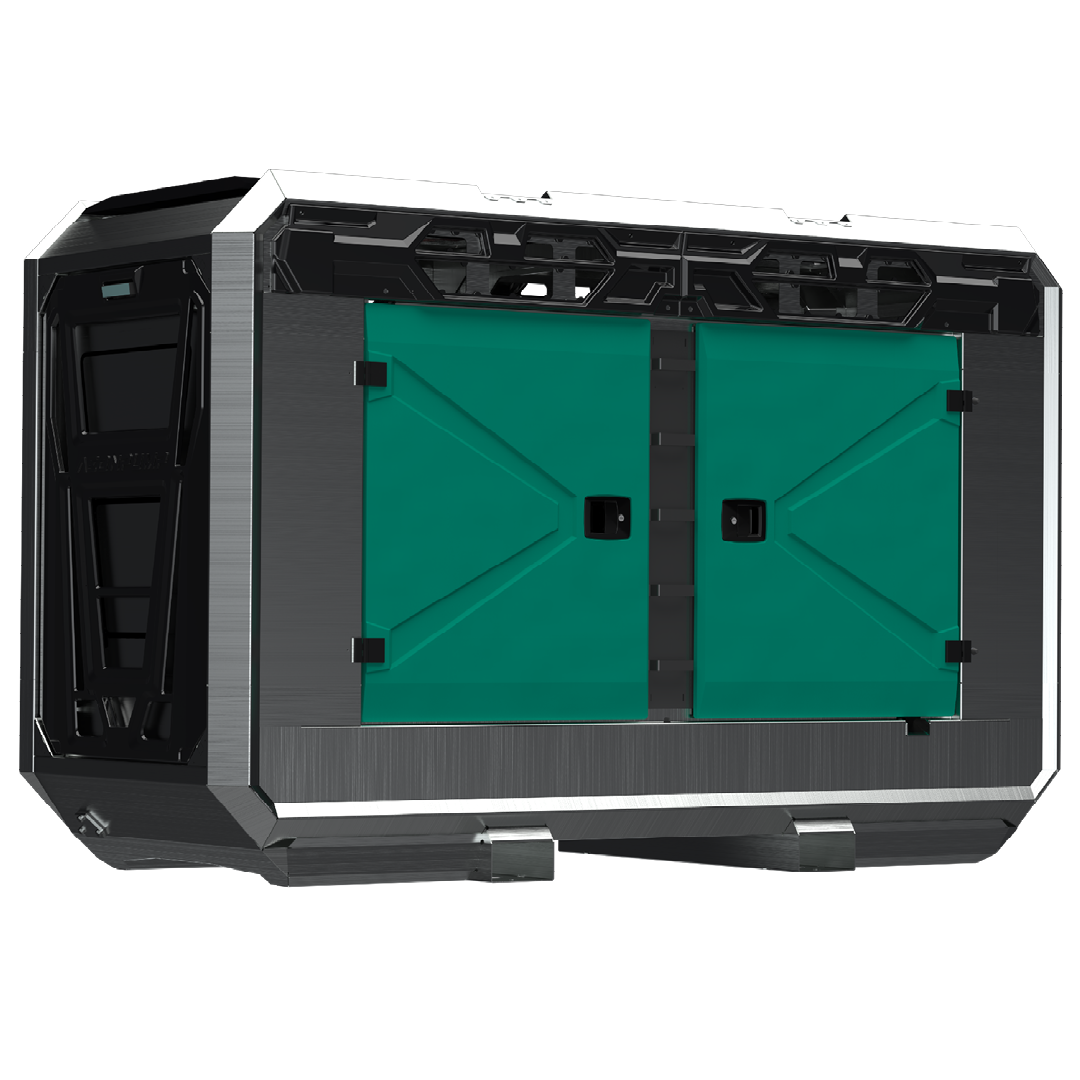

This mobile pump set is capable of transferring up to 1260 m³/h with exceptional efficiency. Constructed using high-quality, high-grade materials with a highly efficient Hidrostal pump and stage V Hatz engine.

The dry weights of the mobile pumps are 3200 kg (Standard) and 3300 kg (Heavy). Additionally, the pump is available with two frame options:

  • Silent canopy: Fully enclosed, featuring a lockable door for security.
  • Open canopy: Open design without doors for easy access.

Both frame options share the following features:

  • Stackable design
  • Hot-dip galvanized steel construction
  • Single lifting point
  • Integrated forklift pockets
  • Standardized dimensions (L x W x H): 2700 x 1150 x 1820 mm

Specifications

  • Power:

    45 to 65 kW

  • Capacity:

    1044 to 1260 m³/h

  • Head:

    35 to 45 mwk

  • Rpm:

    1700

  • Maximum suction height:

    9,0 m

  • Suction and pressure end:

    DN 300 (12″)

  • Material pump body and impeller:

    cast iron

  • Impeller type:

    screw impeller

  • Material shaft seal:

    WC/SiC/NBR

  • Elastomers:

    NBR
