Description

This mobile pump set is capable of transferring up to 115 m³/h with exceptional efficiency. Constructed using high-quality, high-grade materials with a highly efficient Hidrostal pump.

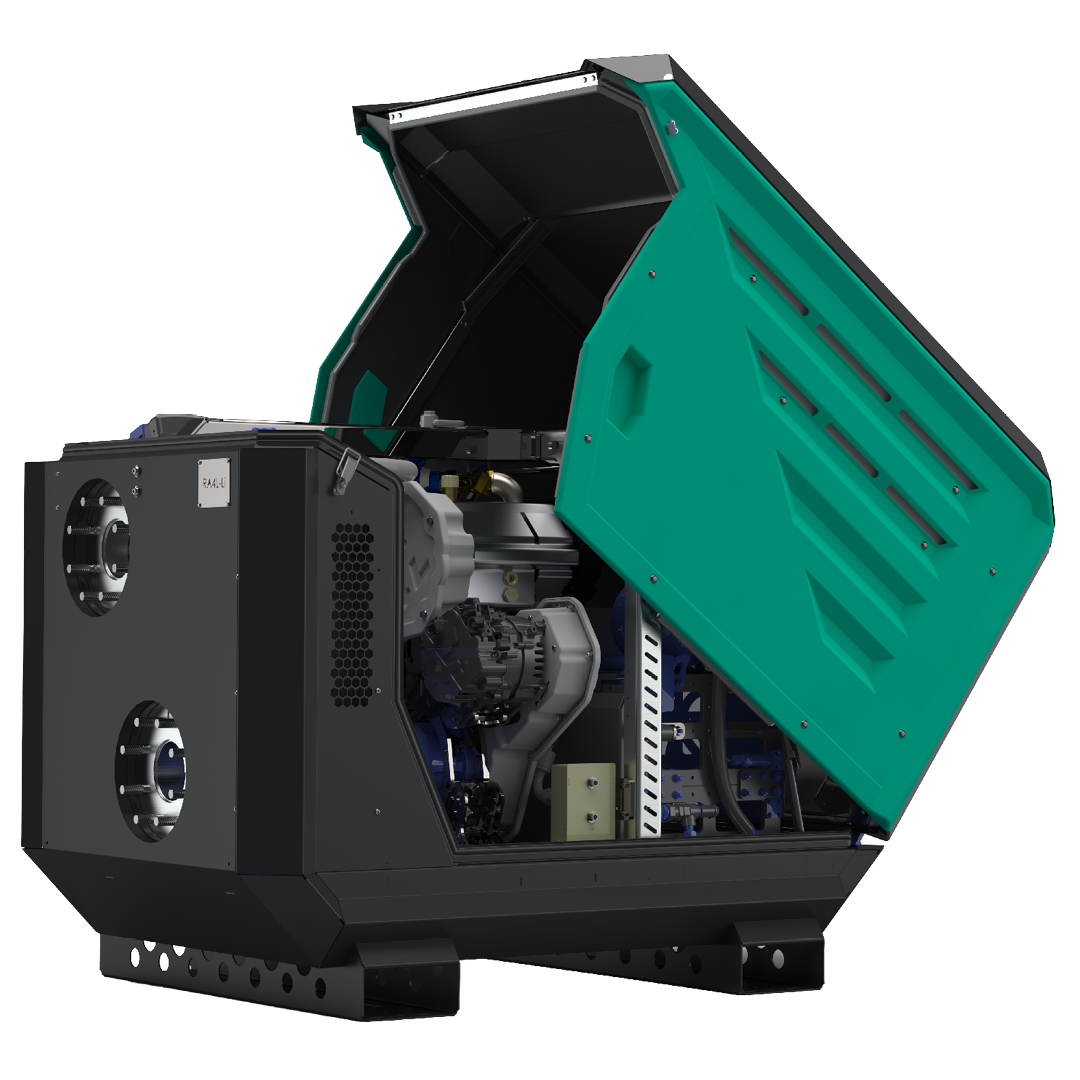

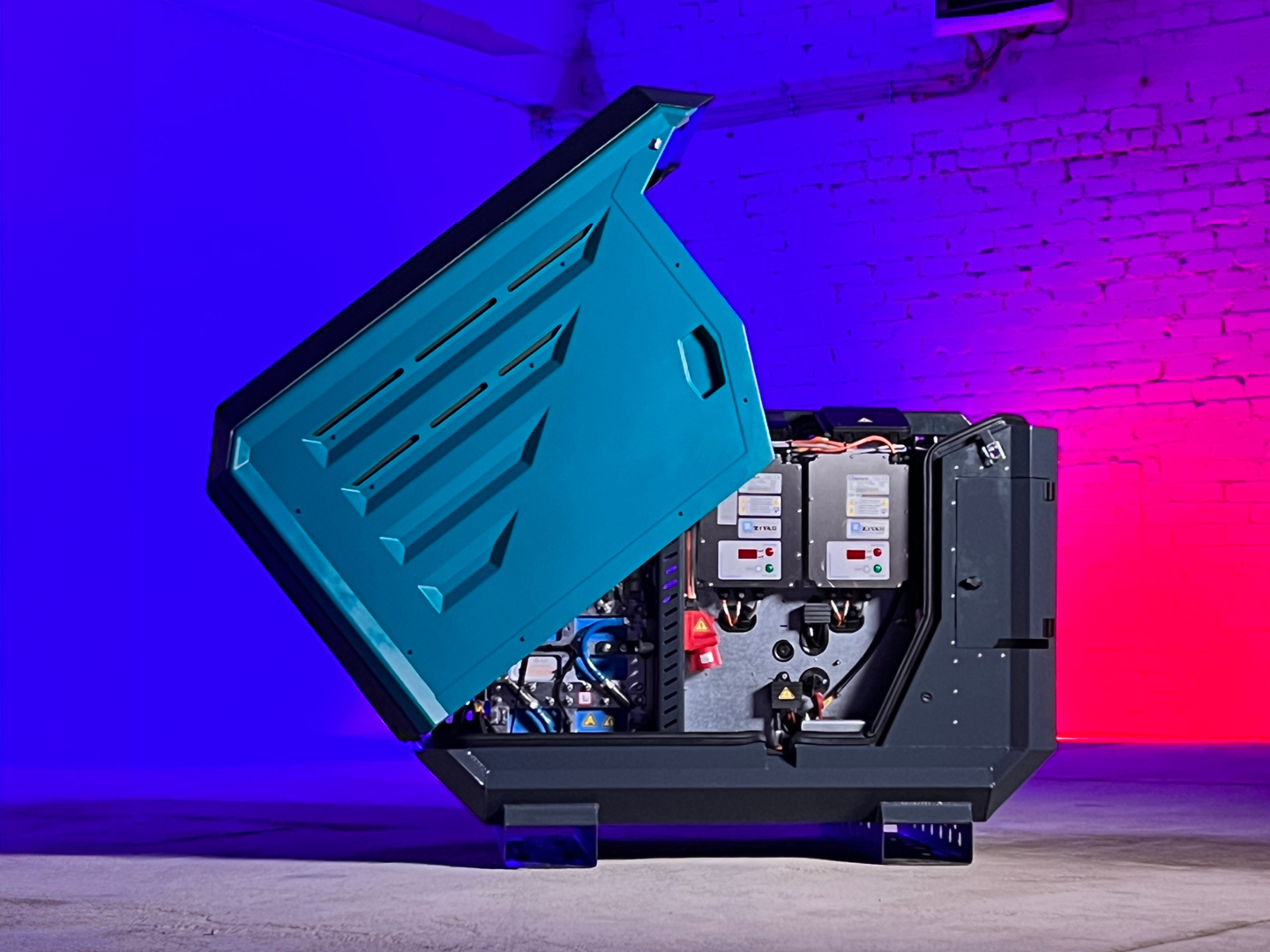

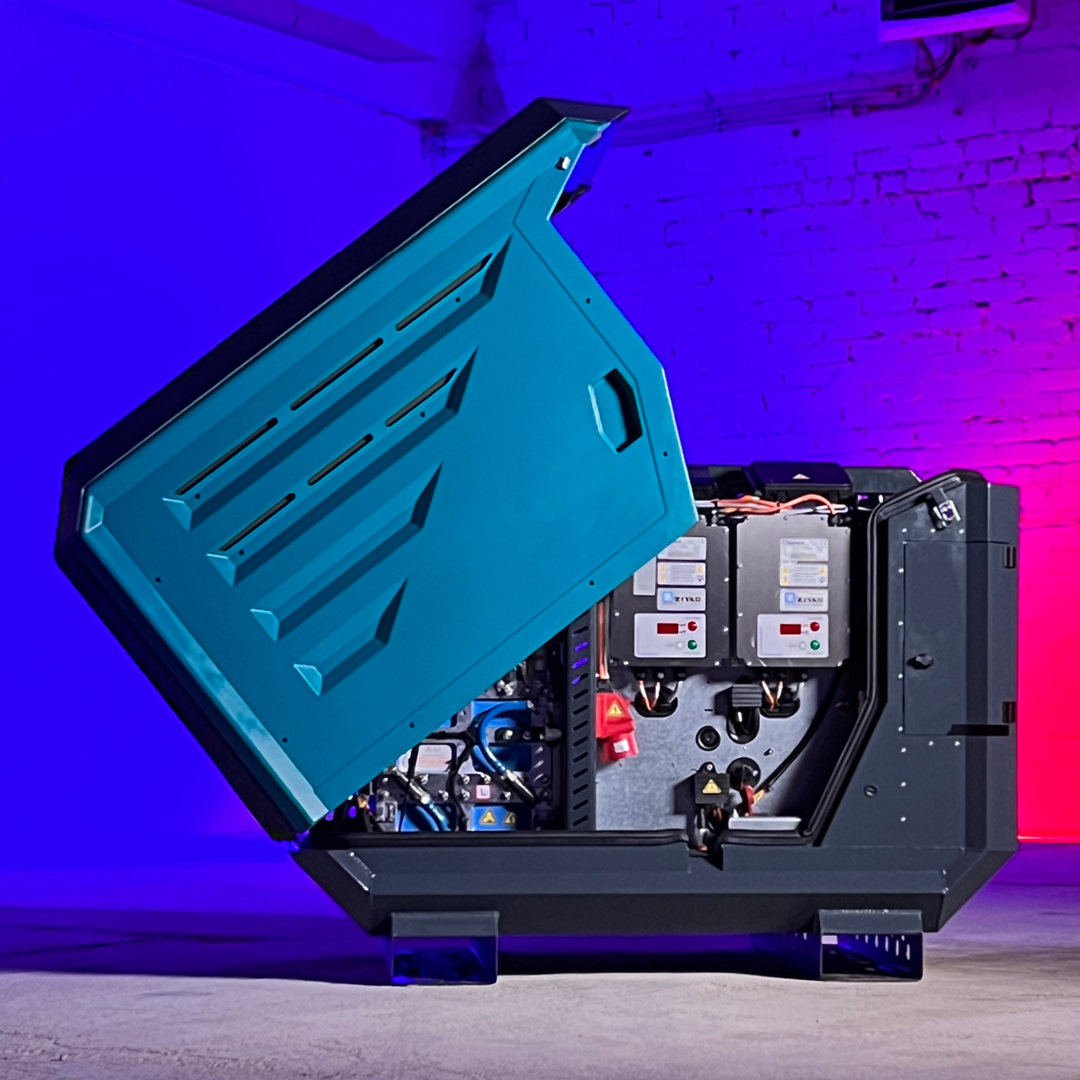

The dry weight of the mobile pump is 630 kg and has a integrated drive. The pump has a silent canopy that is fully enclosed that can fold open for easy maintenance and access.

The frame has the following features:

  • Non-stackable design
  • Steel HDG
  • Single lifting point
  • Integrated forklift pockets
  • Standardized dimensions (L x W x H): 1399 x 907 x 1076 mm

Specifications

  • Power:

    5,5 kW

  • Running time:

    10 hours

  • Charging time:

    2 hours

  • Capacity:

    115 m³/h

  • Head:

    21,0 m

  • Maximum suction height:

    9,0 m

  • Suction and pressure end:

    DN 100 (4″)

  • Material pump body and impeller:

    cast iron

  • Impeller type:

    screw impeller

  • Material shaft seal:

    WC/SiC/NBR
