Description

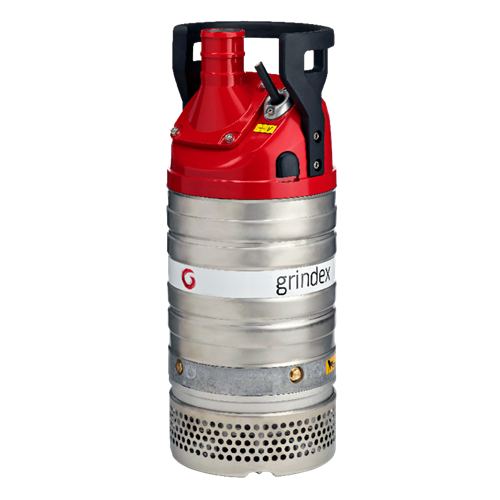

The Grindex Minor is a submersible pump weighing 50 kg. Thanks to the patented air valve and electronic protection system, the pump can run dry for an unlimited time. It is available in two variants: the Minor N (with a maximum capacity of 122 m³/h) and the Minor H (with a maximum capacity of 61 m³/h). This pump is ideal for use in e.g. construction sites.

Specifications

  • Capacity:

    from 5 up to 122 m³/h

  • Head:

    up to 37 mwc

  • Liquid temperature:

    up to 40 °C

  • Voltages:

    3-phase, 50 and 60 Hz

  • Pressure end:

    3” and 4”

  • Material pump body:

    stainless steel, aluminium, NBR and Hard-Iron™

  • Material impeller:

    Hard-Iron™

  • Material shaft seal:

    SiC/SiC

  • Elastomers:

    NBR

Request Quote

Fill out the form and our specialist will contact you as soon as possible.

Grindex Minor
Grindex Minor drainage pump

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
You can add these related products directly to your quotation request.
  • Couplings
    Couplings various, including Storz and Perrot
  • Hose assemblies
    Hose assemblies
  • Low suction collar
    Low suction collar
  • Zinc anodes
    Zinc anodes
