Description

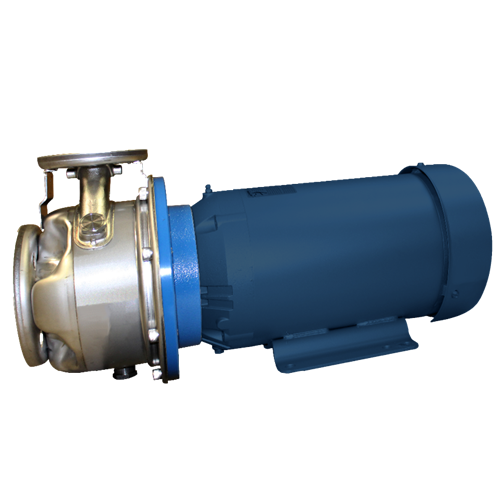

The Goulds e-SH is an efficient and flexible standard-priming pump for transferring water and chemicals in the agricultural and industrial sectors. The pumps are equipped with ANSI flanges and NEMA Premium efficiency motors. The robust construction of the pumps ensures that they have a long service life, and their simple design means that all the service points are easily and quickly accessible. The result of all this: exceptionally low operating costs. This series is available in several variants:

  • e-SHS (short couple with standard EMEA motor)
  • e-SHF (on baseplate with shaft coupling)
  • e-SH (free shaft end)

The Goulds e-SH series is only available in 60 Hz, 208-230/460 and 575V, both with full approvals for the North American market.

Specifications

  • Suitable for chemicals

  • Capacity:

    from 40 to 1150 US gpm

  • Head:

    up to 464 ft TDH

  • Maximum temperature:

    up to 250 °F

  • Voltages:

    1-phase and 3-phase, 60 Hz

  • Suction end:

    2” to 3”

  • Pressure end:

    1” to 2.5”

  • Material pump body and impeller:

    316 stainless steel

  • Material shaft seal:

    Car/Sic

  • Elastomers:

    Viton® FPM
