Description

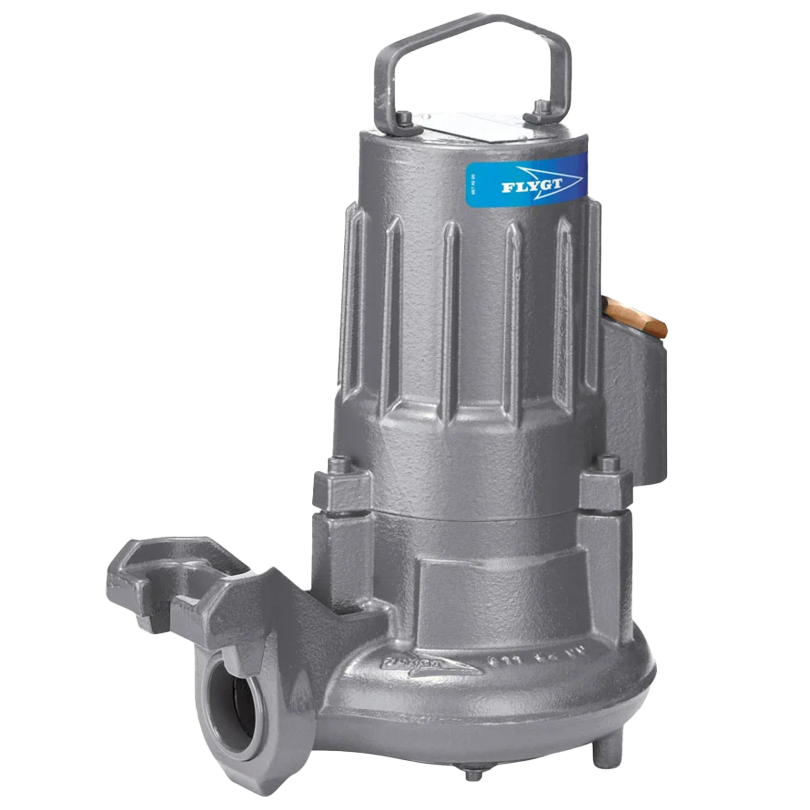

The Flygt 3045 is a compact, high-quality electric submersible pump. The submersible pump is available in the following two versions:

  • C version: For clear water, rainwater, and slightly contaminated wastewater. Equipped with a plastic impeller and suitable for general use.
  • D version: Vortex impeller, specially designed for abrasive media and liquids containing solid particles or fibrous components.

The pumps can be installed as a free-standing pump (F), on guide rods (P), suspended with quick coupling (H) or mobile with hose connection (S). The motors are available in both single-phase and three-phase versions and are suitable for direct start, star-delta start, soft starter or frequency control.

  • Lowara DL
    Pumps, Sewage pump, Drainage pump, Submersible pump

    Lowara DL

  • Flygt 3069
    Wastewater systems, Pumps, Sewage pump, Drainage pump, Submersible pump

    Flygt 3069

  • Flygt 3085
    Wastewater systems, Pumps, Sewage pump, Drainage pump, Submersible pump

    Flygt 3085

  • Flygt Concertor
    Wastewater systems, Pumps, Sewage pump, Drainage pump, Submersible pump

    Flygt Concertor

Specifications

  • Capacity:

    from 6 up to 36 m³/h

  • Head:

    up to 16 mwc

  • Power:

    from 0,75 up to 1,2 kW

  • Liquid temperature:

    up to 40 °C

  • Voltages:

    1-phase and 3-phase, 50 and 60 Hz

  • Pressure end:

    1¼” up to 2″

  • Material pump body and impeller:

    Cast iron, polyamides

  • Material shaft seal:

    Car/Cer or RSiC/RSiC

  • Elastomers:

    Viton® FPM
