Home Products Pumps Aeonpump Raptor 6″ E

More information

Description

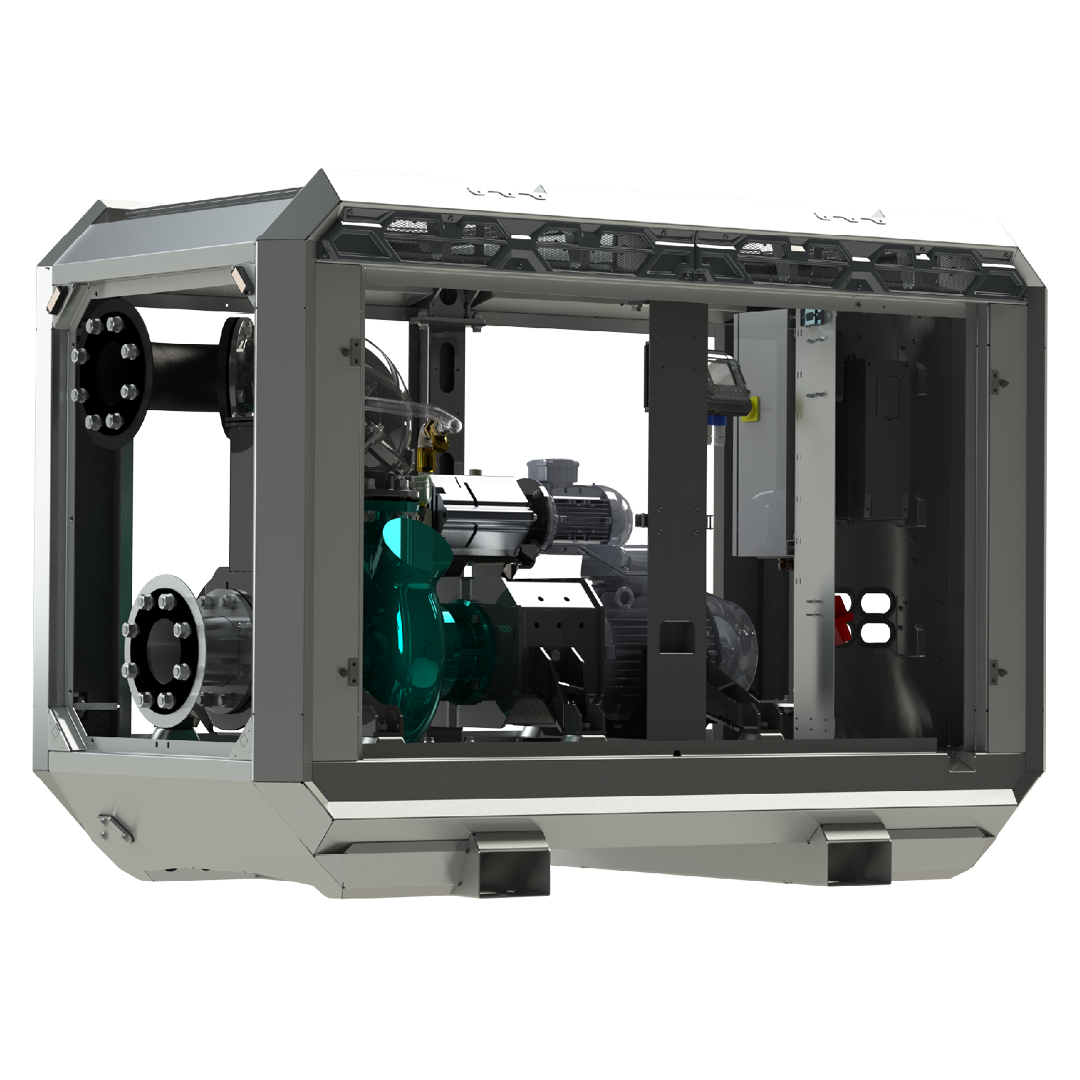

This mobile pump set is capable of transferring up to 450 m³/h with exceptional efficiency. Constructed using high-quality, high-grade materials.

The dry weight of the Standard and Heavy version is 1150 kg, the Bentonite version weighs 1450 kg, with optional configurations for either a drive or a star-delta starter. Additionally, the pump is available with two frame options:

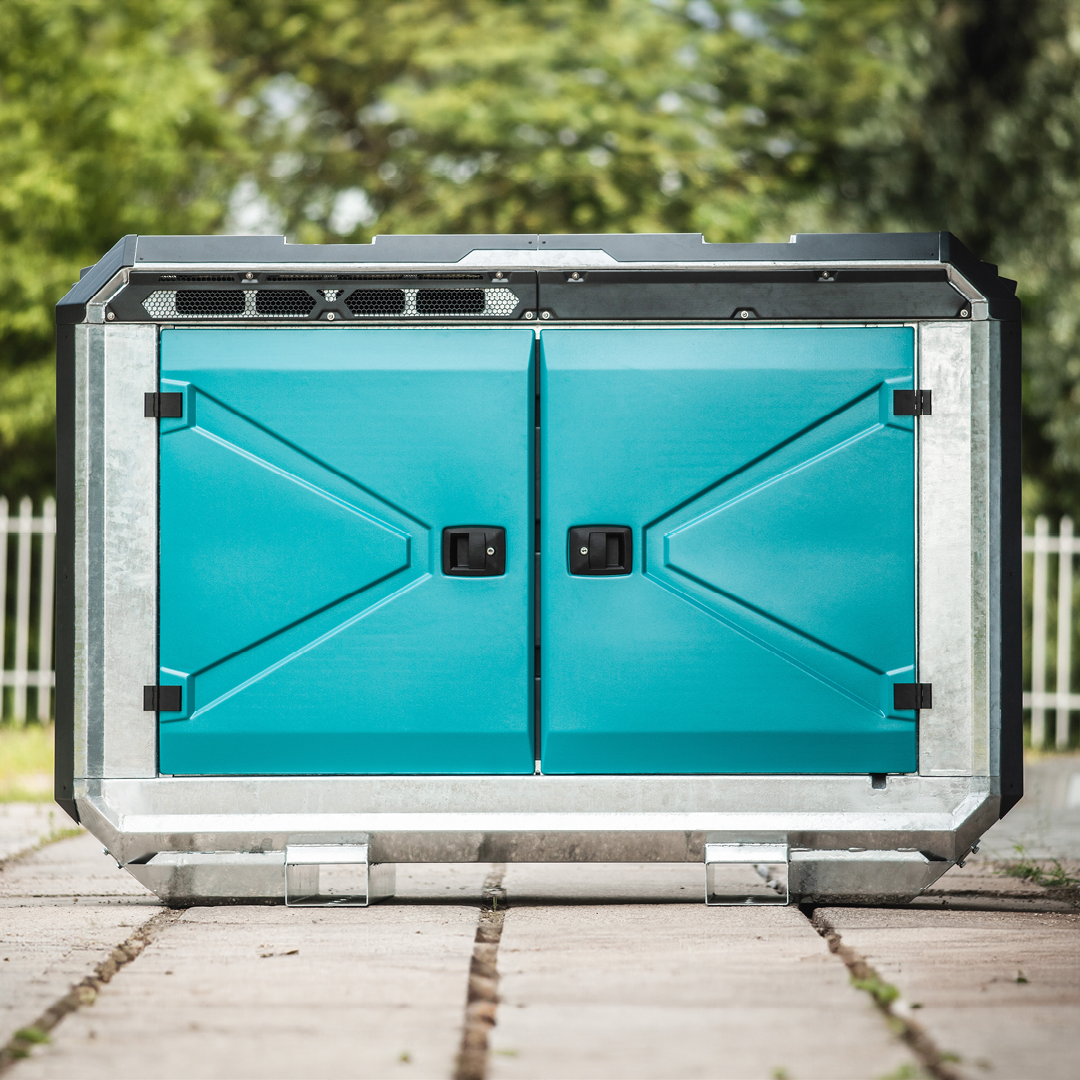

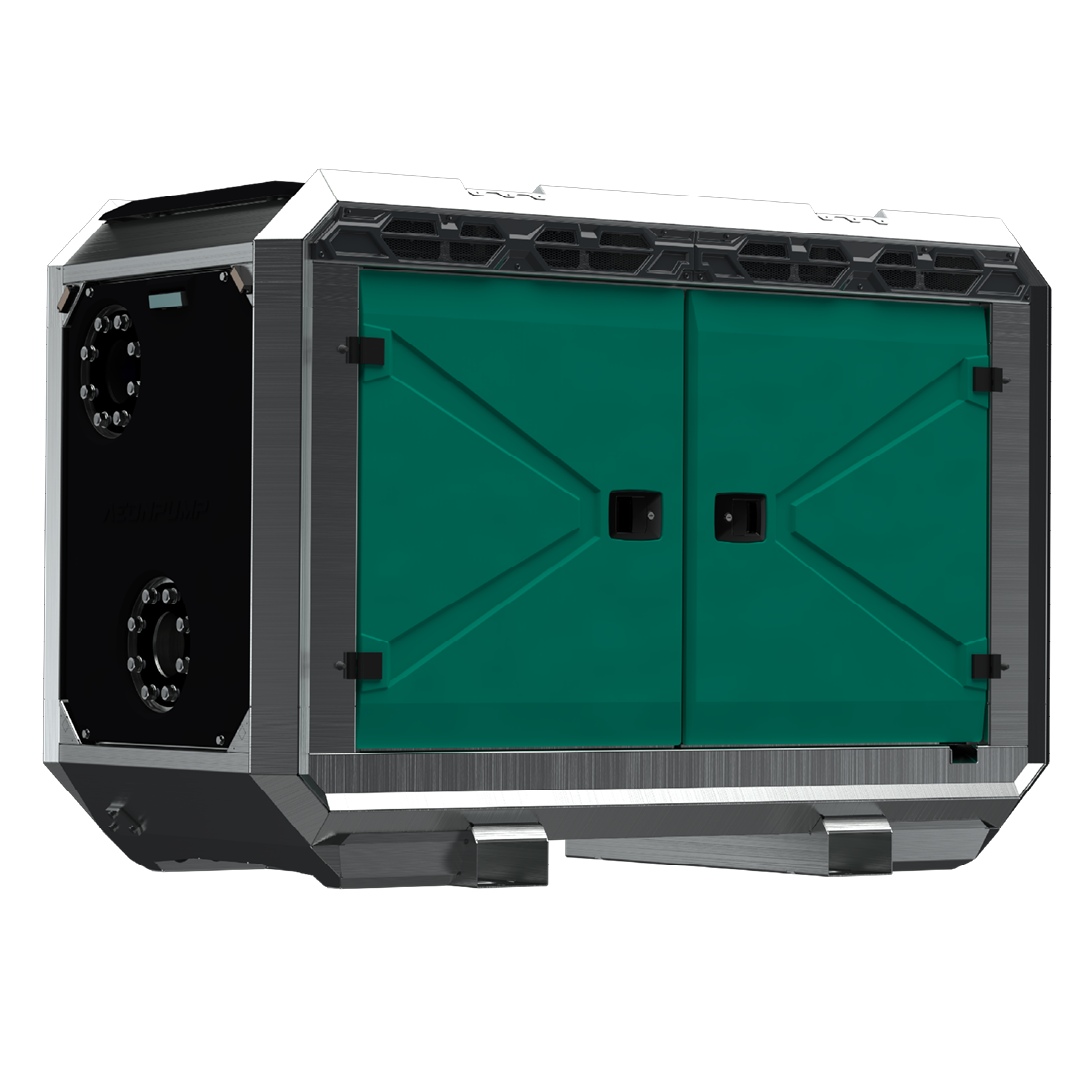

  • Silent canopy: Fully enclosed, featuring a lockable door for security.

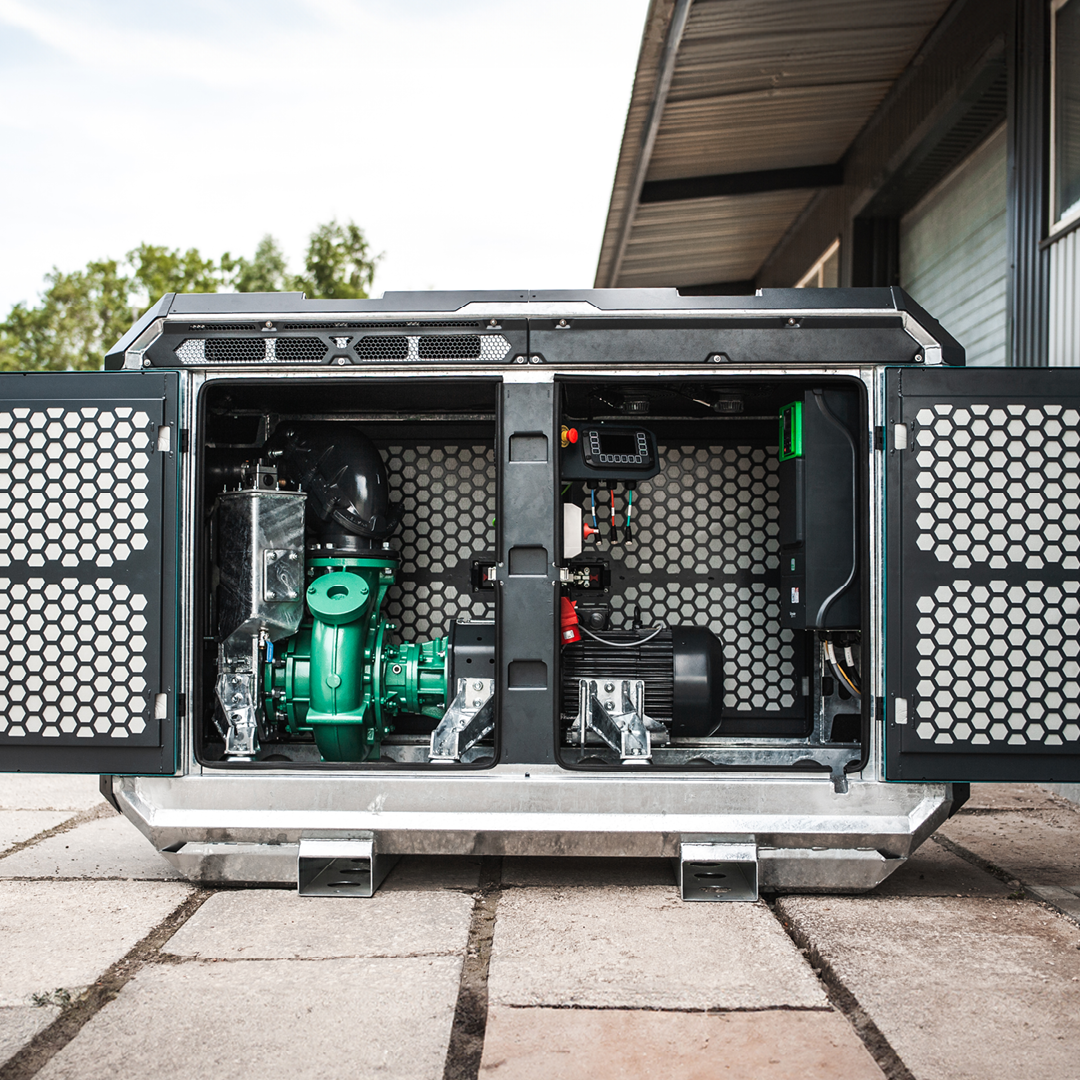

  • Open canopy: Open design without doors for easy access.

Both frame options share the following features:

  • Stackable design
  • Hot-dip galvanized steel construction
  • Single lifting point
  • Integrated forklift pockets
  • Standardized dimensions (L x W x H): 2299 x 1100 x 1601 mm

Specifications

  • Power:

    15 to 18,5 kW

  • Capacity:

    380 to 450 m³/h

  • Head:

    26 to 38 mwc

  • Rpm:

    1474

  • Maximum suction height:

    9,0 m

  • Suction and pressure end:

    DN 150 (6″)

  • Material pump body and impeller:

    cast iron

  • Impeller type:

    screw impeller

  • Material shaft seal:

    WC/SiC/NBR

  • Elastomers:

    NBR

Request Quote

Fill out the form and our specialist will contact you as soon as possible.

Aeonpump Raptor 6" E
Aeonpump Raptor 6" E Electrically driven heavy-duty wastewater pump

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
You can add these related products directly to your quotation request.
  • Couplings
    Couplings various, including Storz and Perrot
  • Hose assemblies
    Hose assemblies
