Home Products Pumps Mobile pump set Aeonpump Raptor 6″ D Lite

More information

Description

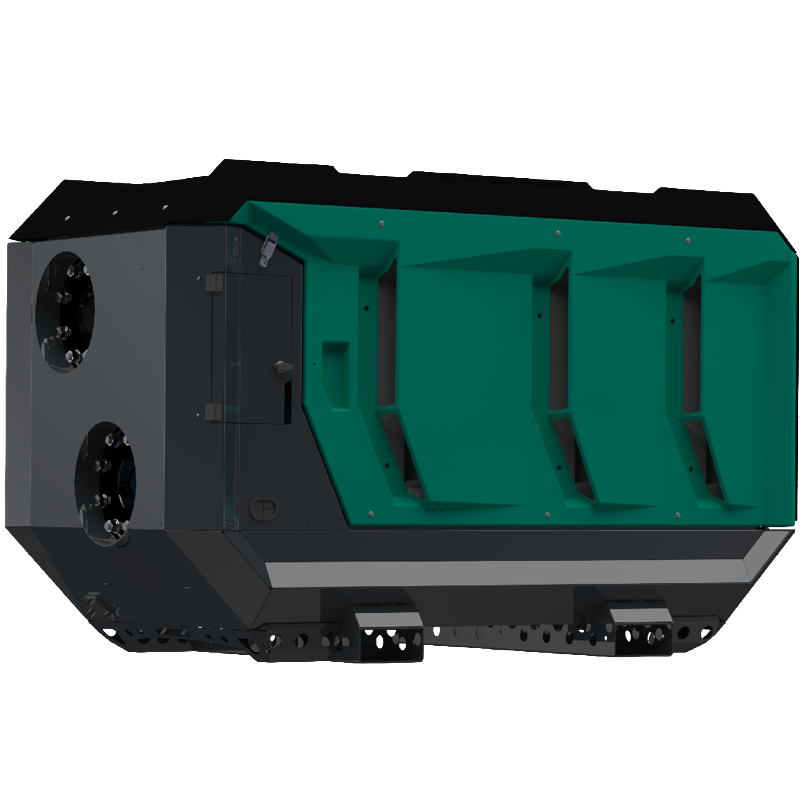

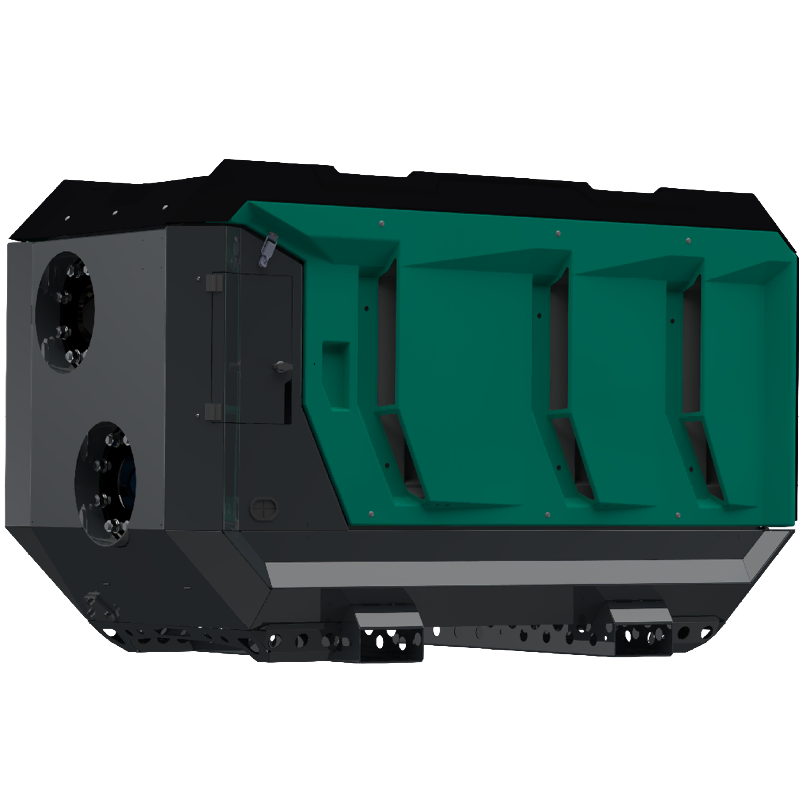

The Aeonpump Raptor 6” D Lite is a compact mobile pump system for pumping wastewater and sludge-containing liquids. Thanks to the use of a screw centrifugal impeller, the pump is capable of handling solids, thereby minimizing clogs and ensuring reliable operation.



The pump is powered by a Stage V diesel engine and is designed for continuous use in infrastructure projects and construction, among other applications. Thanks to its self-priming operation with a dry-running vacuum pump, the unit can be deployed quickly and continue to operate stably under varying conditions.



The Raptor 6” D Lite is designed for mounting on a trailer, making it easy to move the pump between different locations. This makes the model particularly suitable for projects requiring flexibility and rapid deployment.

Specifications

  • Power:

    18,4 kW

  • Capacity:

    up to 430 m³/h

  • Head:

    33 mwc

  • Rpm:

    1500 – 1600

  • Maximum suction height:

    9,0 m

  • Suction and pressure end:

    DN 150 (6″)

  • Material pump body and impeller:

    • cast iron

  • Impeller type:

    screw impeller

  • Material shaft seal:

    • WC/SiC/NBR

  • Elastomers:

    NBR
