Description

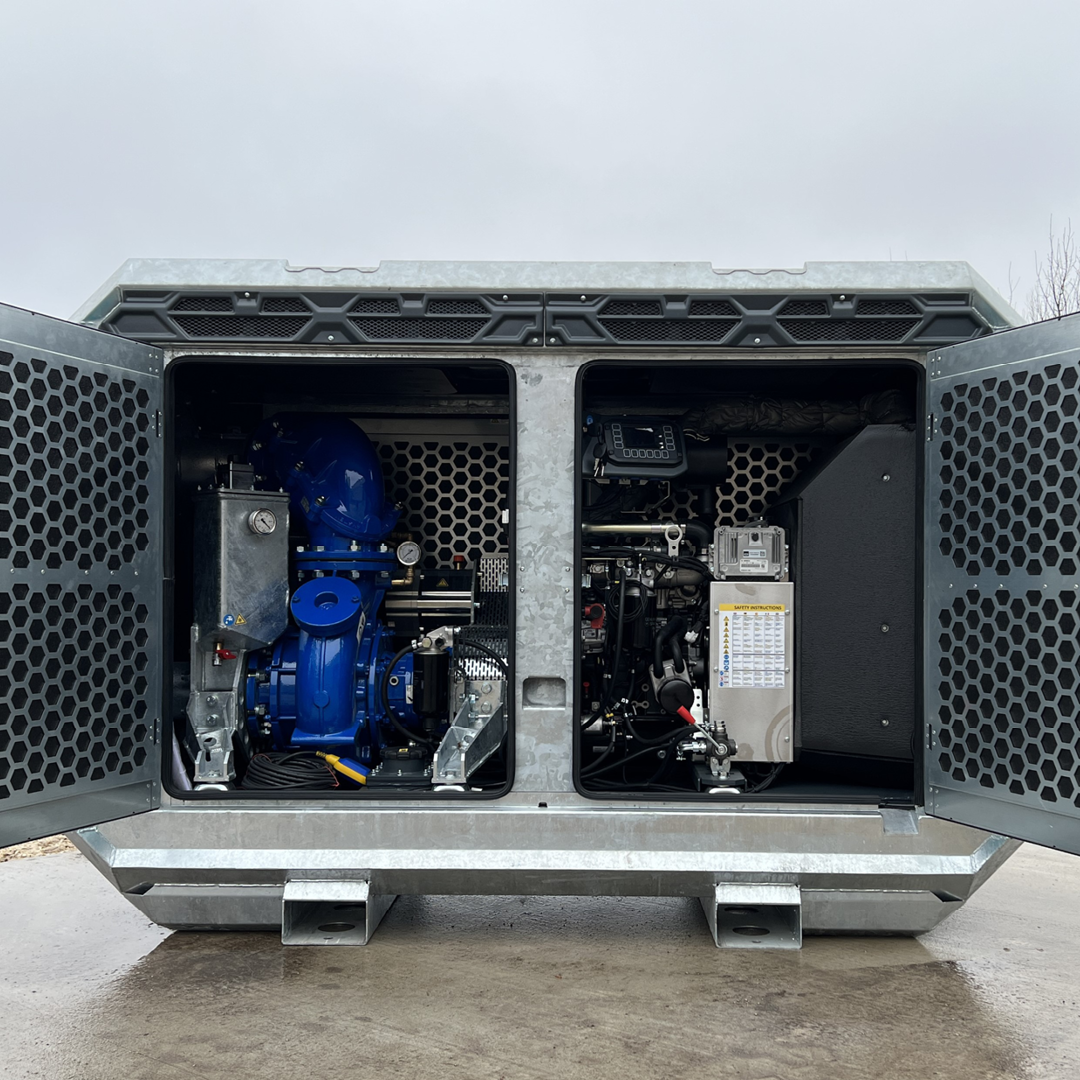

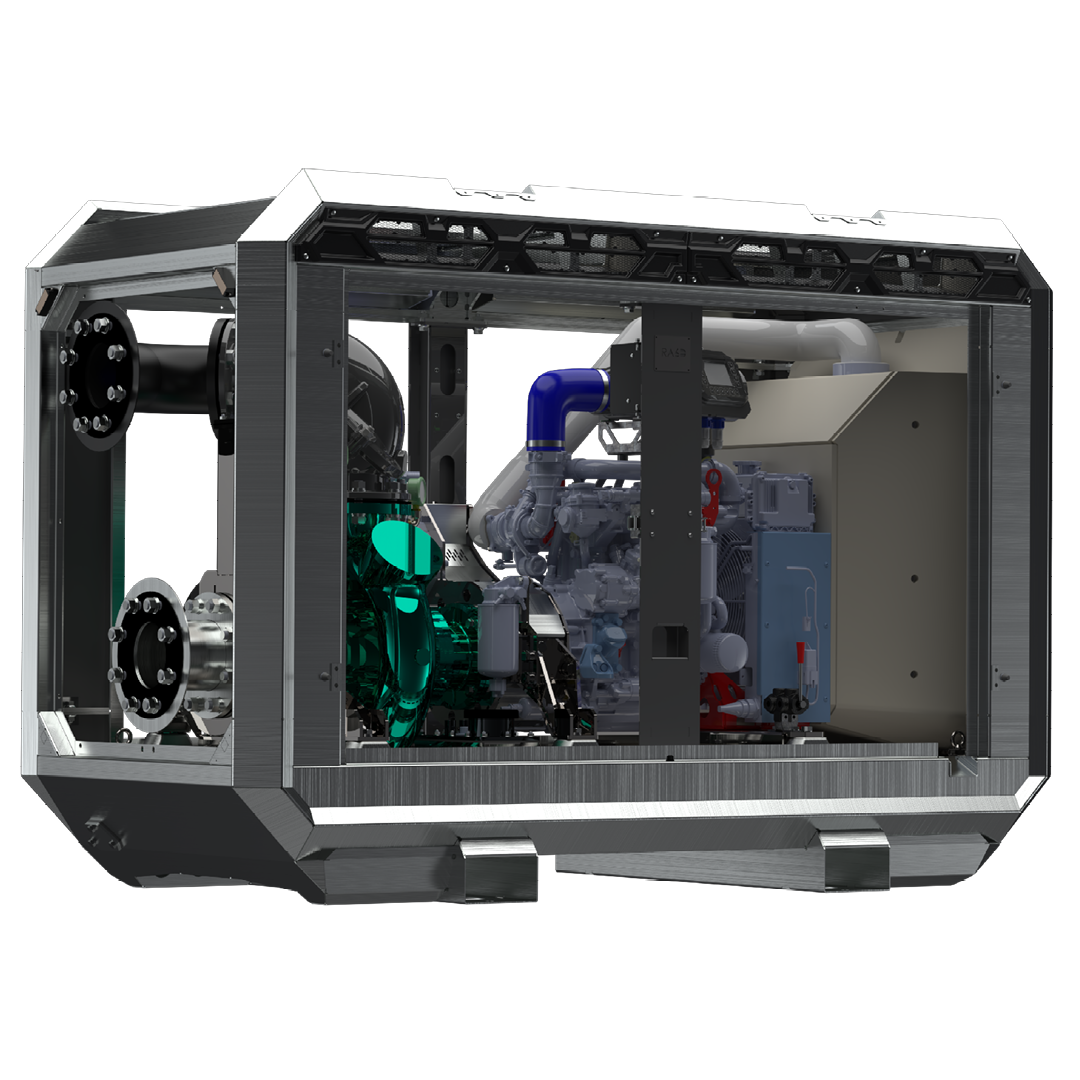

This mobile pump set is capable of transferring up to 500 m³/h with exceptional efficiency. Constructed using high-quality, high-grade materials with a highly efficient Hidrostal pump and stage V Hatz engine.

The dry weight of the models are 830 kg (Lite), 1350 kg (Standard) and 1450 kg (Heavy & Bentonite) . Additionally, the Standard, Heavy and Bentonite models are available with two frame options:

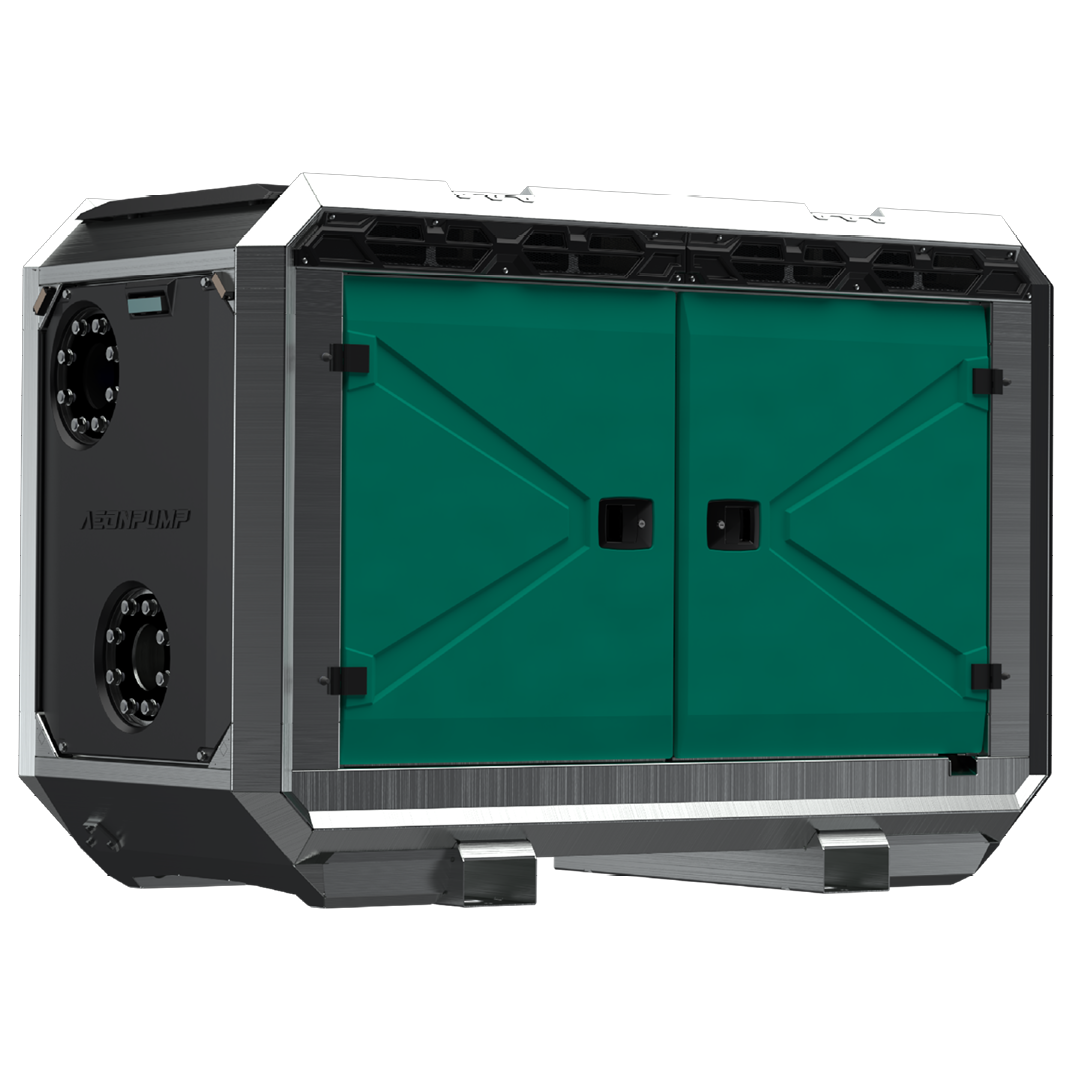

  • Silent canopy: Fully enclosed, featuring a lockable door for security.
  • Open canopy: Open design without doors for easy access.

Both frame options share the following features:

  • Stackable design
  • Hot-dip galvanized steel construction
  • Single lifting point
  • Integrated forklift pockets
  • The dimensions of the Standard and Heavy models are 2299 x 1100 x 1601 mm (L x W x H)



The Lite model is only available with a single frame option. This frame is non-stackable and can be put on a specific Aeonpump trailer, this trailer is available on request. The frame has a single lifting point and has forklift pockets installed. The dimension of this specific model is 2015 x 1033 x 1254 mm (L x W x H)

Specifications

  • Power:

    18,4 to 27 kW

  • Capacity:

    430 to 500 m³/h

  • Head:

    33 to 46 mwc

  • Rpm:

    1600 to 1900

  • Maximum suction height:

    9,0 m

  • Suction and pressure end:

    DN 150 (6″)

  • Material pump body and impeller:

    cast iron

  • Impeller type:

    screw impeller

  • Material shaft seal:

    WC/SiC/NBR

  • Elastomers:

    NBR
